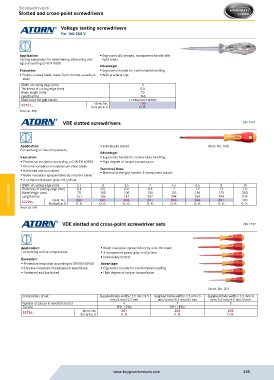

Page 498 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Slotted and cross-point screwdrivers

Voltage testing screwdrivers
For 150-250 V

Application: ƒ Ergonomically shaped, transparent handle with
Testing equipment for determining alternating volt- light tubes
ages according to VDE 0680
Advantage:
Execution: ƒ Ergonomic handle for comfortable handling
ƒ Plastic-coated blade made from chrome-vanadium ƒ With practical clip
steel
Width of cutting edge (mm) 3
Thickness of cutting edge (mm) 0.8
Blade length (mm) 70
Length (mm) 143
Material of the grip handle 1-component plastic
100
Ident. No.
52721... Unit price, € O. R.
Prod. Gr. 590
VDE slotted screwdrivers DIN 7437

Application: ƒ Individually tested Ident. No. 066
For working on live components.
Advantage:
Execution: ƒ Ergonomic handle for comfortable handling
ƒ Protective insulation according to DIN EN 60900 ƒ High degree of torque transmission
ƒ Chrome-vanadium/molybdenum steel blade
ƒ Hardened and burnished Technical Data:
ƒ Material of the grip handle: 3-component plastic
ƒ Blade insulation sprayed directly onto the blade
ƒ 3-component power grip, red/yellow
Width of cutting edge (mm) 2.5 3 3.5 4 5.5 6.5 8 10
Thickness of cutting edge (mm) 0.4 0.5 0.6 0.8 1 1.2 1.2 1.6
Blade length (mm) 75 100 100 100 125 150 175 200
Length (mm) 161 186 197 207 244 269 294 319
026
056
036
041
101
031
066
081
Ident. No.
52726... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
General tools
Prod. Gr. 590
VDE slotted and cross-point screwdriver sets DIN 7437
Application: ƒ Blade insulation sprayed directly onto the blade
For working on live components. ƒ 3-component power grip, red/yellow
Execution: ƒ Individually tested
ƒ Protective insulation according to DIN EN 60900 Advantage:
ƒ Chrome-vanadium/molybdenum steel blade ƒ Ergonomic handle for comfortable handling
ƒ Hardened and burnished ƒ High degree of torque transmission

Ident. No. 201
Composition of set Supplied blade widths: 2.5 mm/3.5 Supplied blade widths: 2.5 mm/3 Supplied blade widths: 2.5 mm/4
mm/4 mm/5.5 mm mm/4 mm/5.5 mm/65 mm mm/5.5 mm/6.5 mm/8 mm
Number of pieces in assortment/set 6 7 5
Tip size PH1 | PH2 PH1 | PH2 -
202
201
203
Ident. No.
52726... Set price, € O. R. O. R. O. R.

www.buypremiumtools.com 498
