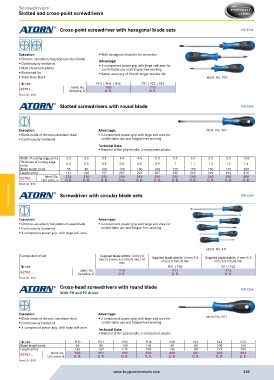

Page 496 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Slotted and cross-point screwdrivers

Cross-point screwdriver with hexagonal blade sets ISO 8764

Execution: ƒ With hexagonal shoulder for wrenches
ƒ Chrome-vanadium/molybdenum steel blade Advantage:
ƒ Continuously hardened ƒ 3-component power grip with large soft area for
ƒ Matt chromium-plated comfortable use and fatigue-free working
ƒ Blackened tip ƒ Better accuracy of fit with longer service life
ƒ Steel blue/black Ident. No. 700
Tip size PH1 | PH2 | PH3 PZ1 | PZ2 | PZ3
710
Ident. No.
700
52751... Set price, € O. R. O. R.
Prod. Gr. 590
Slotted screwdrivers with round blade DIN 5264

Execution: Advantage: Ident. No. 365
ƒ Blade made of chrome-vanadium steel ƒ 3-component power grip with large soft area for
ƒ Continuously hardened comfortable use and fatigue-free working
Technical Data:
ƒ Material of the grip handle: 3-component plastic

Width of cutting edge (mm) 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 8.0 10.0
Thickness of cutting edge 0.4 0.5 0.5 0.8 0.8 0.9 1 1.1 1.2 1.2 1.6
(mm)
Blade length (mm) 75 80 100 100 100 100 125 150 150 175 200
Length (mm) 161 166 197 207 207 207 232 269 269 294 319
355
380
340
360
325
335
Ident. No.
345
400
365
350
52752... Unit price, € O. R. 330 O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
O. R.
Prod. Gr. 590
Screwdriver with circular blade sets DIN 5264
General tools
Execution: Advantage:
ƒ Chrome-vanadium/molybdenum steel blade ƒ 3-component power grip with large soft area for
ƒ Continuously hardened comfortable use and fatigue-free working
ƒ 3-component power grip, with large soft area
Ident. No. 411
Composition of set Supplied blade widths: 3 mm/4
mm/5.5 mm/6.5 mm/8 mm/10 Supplied blade widths: 4 mm/5.5 Supplied blade widths: 4 mm/5.5
mm/6.5 mm/8 mm
mm/6.5 mm/8 mm
mm
Tip size - PH1 | PH2 PZ1 | PZ2
412
411
410
Ident. No.
52752... Set price, € O. R. O. R. O. R.
Prod. Gr. 590
Cross-head screwdrivers with round blade DIN 5264
With PH and PZ driver
Execution: Advantage:
ƒ Blade made of chrome-vanadium steel ƒ 3-component power grip with large soft area for Ident. No. 501
ƒ Continuously hardened comfortable use and fatigue-free working
ƒ 3-component power grip, with large soft area
Technical Data:
ƒ Material of the grip handle: 2-component plastic
Tip size PH0 PH1 PH2 PH3 PZ0 PZ1 PZ2 PZ3
Blade length (mm) 60 80 100 150 60 80 100 150
Length (mm) 146 187 219 269 146 187 219 269
601
602
501
500
603
600
503
502
Ident. No.
52752... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 590
www.buypremiumtools.com 496
