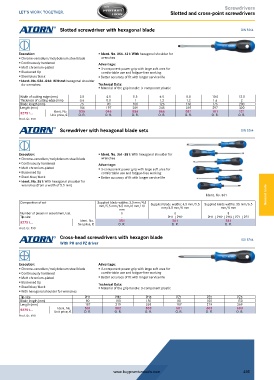

Page 495 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Slotted and cross-point screwdrivers

Slotted screwdriver with hexagonal blade DIN 5264

Execution: ƒ Ident. No. 056–121: With hexagonal shoulder for
ƒ Chrome-vanadium/molybdenum steel blade wrenches
ƒ Continuously hardened Advantage:
ƒ Matt chromium-plated ƒ 3-component power grip with large soft area for
ƒ Blackened tip comfortable use and fatigue-free working
ƒ Steel blue/black ƒ Better accuracy of fit with longer service life
ƒ Ident. No. 036–046: Without hexagonal shoulder
for wrenches Technical Data:
ƒ Material of the grip handle: 3-component plastic
Width of cutting edge (mm) 3.5 4.5 5.5 6.5 8.0 10.0 12.0
Thickness of cutting edge (mm) 0.6 0.8 1 1.2 1.2 1.6 2
Blade length (mm) 75 90 100 125 150 175 200
Length (mm) 186 197 209 245 269 297 320
121
081
046
066
036
101
Ident. No.
52751... Unit price, € O. R. O. R. 056 O. R. O. R. O. R. O. R.
O. R.
Prod. Gr. 590
Screwdriver with hexagonal blade sets DIN 5264
Execution: ƒ Ident. No. 361–381: With hexagonal shoulder for
ƒ Chrome-vanadium/molybdenum steel blade wrenches
ƒ Continuously hardened Advantage:
ƒ Matt chromium-plated ƒ 3-component power grip with large soft area for
ƒ Blackened tip comfortable use and fatigue-free working
ƒ Steel blue/black ƒ Better accuracy of fit with longer service life
ƒ Ident. No. 351: With hexagonal shoulder for
wrenches (from a width of 5.5 mm)
Ident. No. 361 General tools
Composition of set Supplied blade widths: 3.5 mm/4.5 Supplied blade widths: 4.5 mm/5.5 Supplied blade widths: 55 mm/6.5
mm/5.5 mm/6.5 mm/8 mm/10
mm mm/6.5 mm/8 mm mm/8 mm
Number of pieces in assortment/set 6 6 8
Tip size - PH1 | PH2 PH1 | PH2 | PH3 | PZ1 | PZ2
351
361
381
Ident. No.
52751... Set price, € O. R. O. R. O. R.
Prod. Gr. 590
Cross-head screwdrivers with hexagon blade ISO 8764
With PH and PZ driver

Execution: Advantage:
ƒ Chrome-vanadium/molybdenum steel blade ƒ 3-component power grip with large soft area for
ƒ Continuously hardened comfortable use and fatigue-free working
ƒ Matt chromium-plated ƒ Better accuracy of fit with longer service life
ƒ Blackened tip Technical Data:
ƒ Steel blue/black ƒ Material of the grip handle: 3-component plastic
ƒ With hexagonal shoulder for wrenches
Tip size PH1 PH2 PH3 PZ1 PZ2 PZ3
Blade length (mm) 80 100 150 80 100 150
Length (mm) 187 219 269 187 219 269
Ident. No.
602
603
503
502
501
601
52751... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 590

www.buypremiumtools.com 495
