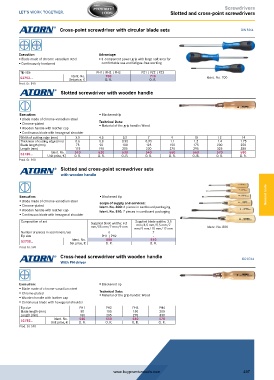

Page 497 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Slotted and cross-point screwdrivers

Cross-point screwdriver with circular blade sets DIN 5264

Execution: Advantage:
ƒ Blade made of chrome-vanadium steel ƒ 3-component power grip with large soft area for
ƒ Continuously hardened comfortable use and fatigue-free working
Tip size PH1 | PH2 | PH3 PZ1 | PZ2 | PZ3
700
710
Ident. No.
52752... Set price, € O. R. O. R. Ident. No. 700
Prod. Gr. 590
Slotted screwdriver with wooden handle

Execution: ƒ Blackened tip
ƒ Blade made of chrome-vanadium steel
ƒ Chrome-plated Technical Data:
ƒ Material of the grip handle: Wood
ƒ Wooden handle with leather cap
ƒ Continuous blade with hexagonal shoulder
Width of cutting edge (mm) 3.5 4.5 5.5 7 9 10 12 14
Thickness of cutting edge (mm) 0.6 0.8 0.95 0.95 1.1 1.2 1.4 1.75
Blade length (mm) 75 90 100 125 150 175 200 250
Length (mm) 175 190 205 230 270 295 325 380
540
550
520
530
580
570
510
Ident. No.
52730... Unit price, € O. R. O. R. O. R. O. R. O. R. 560 O. R. O. R.
O. R.
Prod. Gr. 590
Slotted and cross-point screwdriver sets
with wooden handle
Execution: ƒ Blackened tip General tools
ƒ Blade made of chrome-vanadium steel scope of supply and services:
ƒ Chrome-plated Ident. No. 800: 6 pieces in cardboard packaging
ƒ Wooden handle with leather cap Ident. No. 810: 7 pieces in cardboard packaging
ƒ Continuous blade with hexagonal shoulder
Composition of set Supplied blade widths: 4.5 Supplied blade widths: 3.5
mm/4.5 mm/5.5 mm/7
mm/55 mm/7 mm/9 mm mm/9 mm/10 mm/12 mm Ident. No. 800
Number of pieces in assortment/set 6 7
Tip size PH1 | PH2 -
800
810
Ident. No.
52730... Set price, € O. R. O. R.
Prod. Gr. 590
Cross-head screwdriver with wooden handle
With PH driver ISO 8764

Execution: ƒ Blackened tip
ƒ Blade made of chrome-vanadium steel
ƒ Chrome-plated Technical Data:
ƒ Material of the grip handle: Wood
ƒ Wooden handle with leather cap
ƒ Continuous blade with hexagonal shoulder
Tip size PH1 PH2 PH3 PH4
Blade length (mm) 80 100 150 200
Length (mm) 180 205 270 330
Ident. No.
540
570
560
52782... Unit price, € O. R. 550 O. R. O. R.
O. R.
Prod. Gr. 590

www.buypremiumtools.com 497
