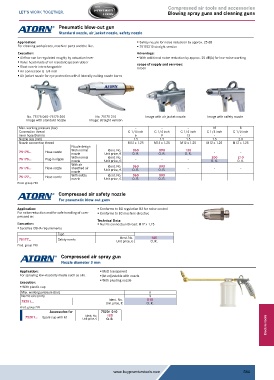

Page 584 - Buy Premium Tools ATORN Catalogue

Compressed air tools and accessories
Blowing spray guns and cleaning guns

Pneumatic blow-out gun
Standard nozzle, air jacket nozzle, safety nozzle
Application: ƒ Safety nozzle for noise reduction by approx. 25 dB
For cleaning workpieces, machine parts and the like. ƒ 75175210 straight version
Execution: Advantage:
ƒ Airflow can be regulated roughly by actuation lever ƒ With additional noise reduction by approx. 25 dB(A) for low-noise working
ƒ Valve head made of oil-resistant special rubber scope of supply and services:
ƒ Blast nozzle interchangeable In box
ƒ Air connection G 1/4 inch
ƒ Air jacket nozzle for eye protection with 8 laterally exiting nozzle bores

No. 75175 060–75175 200 No. 75175 210 Image with air jacket nozzle Image with safety nozzle
Image with standard nozzle Image: straight version
Max. working pressure (bar) - - - 10 8
Connection thread G 1/4 inch G 1/4 inch G 1/4 inch G 1/4 inch G 1/4 inch
Inner hose Ø (mm) 6 9 13 - -
Nozzle size (mm) 1.5 1.5 1.5 1.5 2.0
Nozzle connection thread M12 x 1.25 M12 x 1.25 M12 x 1.25 M12 x 1.25 M12 x 1.25
Nozzle design
Ident. No.
090
060
130
75175... Hose nozzle With normal Unit price, € O. R. O. R. O. R. - -
nozzle
210
Ident. No.
200
75175... Plug-in nipple With normal Unit price, € - - - O. R. O. R.
nozzle
With air
090
060
Ident. No.
75176... Hose nozzle sheathed air Unit price, € O. R. O. R. - - -
nozzle
060
090
Ident. No.
75177... Hose nozzle With safety Unit price, € O. R. O. R. - - -
nozzle
Prod. group 790
Compressed air safety nozzle
For pneumatic blow-out guns
Application: ƒ Conforms to BG regulation B3 for noise control
For noise reduction and for safe handling of com- ƒ Conforms to EC machine directive
pressed air.
Technical Data:
Execution: ƒ Nozzle connection thread: M12 x 1.25
ƒ Satisfies OSHA requirements
Type
Ident. No.
145
75177... Safety nozzle Unit price, € O. R.
Prod. group 790
Compressed air spray gun
Nozzle diameter 3 mm
Application: ƒ Matt transparent
For spraying low-viscosity media such as oils. ƒ Jet adjustable with nozzle
Execution: ƒ With pivoting nozzle
ƒ With plastic cup
Max. working pressure (bar) 6
Nozzle size (mm) 3
010
Ident. No.
75201... Unit price, € O. R.
Prod. group 790
Accessories for 75201 010
100
Ident. No.
Electric tools
75201... Spare cup with lid Unit price, € O. R.
