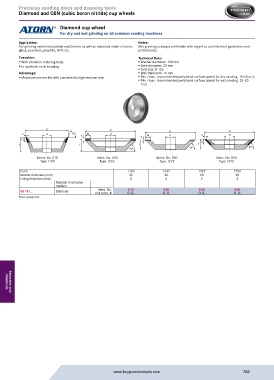

P. 582
Precision sanding discs and dressing tools
Diamond and CBN (cubic boron nitride) cup wheels
Diamond cup wheel
For dry and wet grinding on all common sanding machines
Application: Notes:
For grinding cemented carbide and Cermet as well as materials made of stone, Wet grinding is always preferable with regard to tool life, heat generation and
glass, porcelain, graphite, GFP, etc. performance.
Execution: Technical Data:
With vibration-reducing body Washer diameter: 100 mm
In synthetic resin bonding Bore diameter: 20 mm
Grid size: D 126
Advantage: Wall thickness: 10 mm
Maximum service life with consistently high removal rate Min./max. recommended peripheral surface speed for dry sanding: 15-20 m/s
Min./max. recommended peripheral surface speed for wet sanding: 25-30
m/s
D D D D
X H 70° W H
X W H X H
X
U
U
T T T T 45°
45° 45°
Ident. No. 010 Ident. No. 020 Ident. No. 030 Ident. No. 040
Type 11V9 Type 12A2 Type 12V2 Type 12V9
Form 11V9 12A2 12V2 12V9
Washer thickness (mm) 35 26 20 20
Lining thickness (mm) 3 4 2 3
Material of abrasive
medium
030
020
Ident. No.
010
040
60197... Diamond Unit price, € O. R. O. R. O. R. O. R.
Prod. group 696
chemicals
Abrasives and
