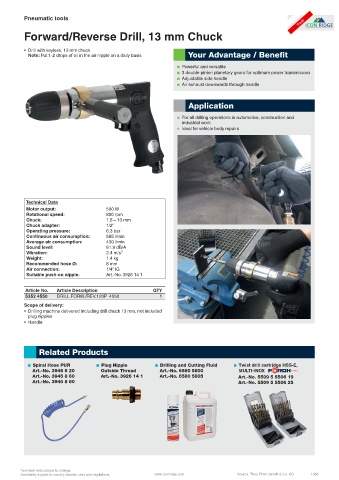

Page 1336 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Forward/Reverse Drill, 13 mm Chuck

• Drill with keyless, 13 mm chuck
Note: Put 1-2 drops of oil in the air nipple on a daily basis Your Advantage / Benefit
Powerful and versatile
3 double-pinion planetary gears for optimum power transmission
Adjustable side handle
Air exhaust downwards through handle

Application

For all drilling operations in automotive, construction and
industrial work
Ideal for vehicle body repairs

Technical Data
Motor output: 500 W
Rotational speed: 800 rpm
Chuck: 1.5 – 13 mm
Chuck adapter: 1/2”
Operating pressure: 6.3 bar
Continuous air consumption: 585 l/min
Average air consumption: 430 l/min
Sound level: 81.9 dB/A
Vibration: 2.4 m/s²
Weight: 1.4 kg
Recommended hose Ø: 8 mm
Air connection: 1/4” IG
Suitable push-on nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 4550 DRILL FORW./REV.120P 4550 1
Scope of delivery:
• Drilling machine delivered including drill chuck 13 mm, not included
plug nipples
• Handle

Related Products

Spiral Hose PUR Plug Nipple Drilling and Cutting Fluid Twist drill cartridge HSS-E,
Art.-No. 3945 8 20 Outside Thread Art.-No. 6580 5800 MULTI-INOX
Art.-No. 3945 8 60 Art.-No. 3926 14 1 Art.-No. 6580 5805 Art.-No. 5509 5 5506 19
Art.-No. 3945 8 80 Art.-No. 5509 5 5506 25
