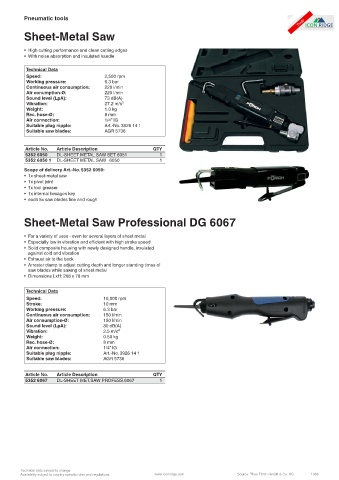

Page 1339 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Sheet-Metal Saw

• High cutting performance and clean cutting edges
• With noise absorption and insulated handle

Technical Data
Speed: 2,500 rpm
Working pressure: 6.3 bar
Continuous air consumption: 220 l/min
Air conumption-Ø: 220 l/min
Sound level (LpA): 73 dB(A)
Vibration: 27.2 m/s²
Weight: 1.0 kg
Rec. hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1
Suitable saw blades: AGR 5736

Article No. Article Description QTY
5352 6050 DL-SHEET METAL SAW SET 6051 1
5352 6050 1 DL-SHEET METAL SAW 6050 1
Scope of delivery Art.-No. 5352 6050:
• 1x sheet-metal saw
• 1x pivot joint
• 1x tool greaser
• 1x internal hexagon key
• each 5x saw blades fine and rough

Sheet-Metal Saw Professional DG 6067

• For a variety of uses - even for several layers of sheet metal
• Especially low in vibration and efficient with high stroke speed
• Solid composite housing with newly designed handle, insulated
against cold and vibration
• Exhaust air to the back
• Arrester clamp to adjust cutting depth and longer standing times of
saw blades while sawing of sheet metal
• Dimensions LxH: 268 x 78 mm

Technical Data
Speed: 10,000 rpm
Stroke: 10 mm
Working pressure: 6.3 bar
Continuous air consumption: 150 l/min
Air consumption-Ø: 150 l/min
Sound level (LpA): 80 dB(A)
Vibration: 2.5 m/s²
Weight: 0.50 kg
Rec. hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1
Suitable saw blades: AGR 5736

Article No. Article Description QTY
5352 6067 DL-SHEET MET.SAW PROFESS.6067 1

Technical data subject to change.
