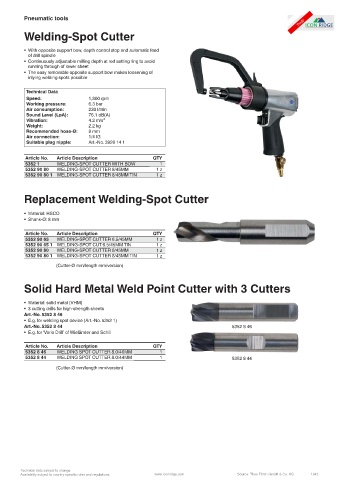

Page 1342 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Welding-Spot Cutter

• With opposite support bow, depth control stop and automatic feed
of drill spindle
• Continuously adjustable milling depth at red setting ring to avoid
running through of lower sheet
• The easy removable opposite support bow makes loosening of
inlying welding spots possible

Technical Data
Speed: 1,800 rpm
Working pressure: 6.3 bar
Air consumption: 230 l/min
Sound Level (LpA): 76.1 dB(A)
Vibration: 4.2 m/s²
Weight: 2.2 kg
Recommended hose-Ø: 8 mm
Air connection: 1/4 IG
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 1 WELDING-SPOT CUTTER WITH BOW 1
5352 90 80 WELDING-SPOT CUTTER 8/45MM 1 z
5352 90 80 1 WELDING-SPOT CUTTER 8/45MM TIN 1 z

Replacement Welding-Spot Cutter

• Material: HSCO
• Shank-Ø: 8 mm

Article No. Article Description QTY
5352 90 65 WELDING-SPOT CUTTER 6.5/45MM 1 z
5352 90 65 1 WELDING-SPOT CUT.6.5/45MM TIN 1 z
5352 90 80 WELDING-SPOT CUTTER 8/45MM 1 z
5352 90 80 1 WELDING-SPOT CUTTER 8/45MM TIN 1 z
(Cutter-Ø mm/length mm/version)

Solid Hard Metal Weld Point Cutter with 3 Cutters

• Material: solid metal (VHM)
• 3 cutting drills for high-strength sheets
Art.-No. 5352 8 46
• E.g. for welding spot device (Art.-No. 5352 1)
Art.-No. 5352 8 44 5352 8 46
• E.g. for ‘Vario Drill’ of Wieländer and Schill

Article No. Article Description QTY
5352 8 46 WELDING SPOT CUTTER 8.0/46MM 1
5352 8 44 WELDING SPOT CUTTER 8.0/44MM 1 5352 8 44
(Cutter-Ø mm/length mm/version)

Technical data subject to change.
