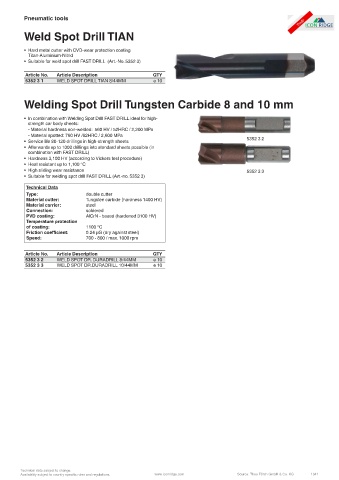

Page 1341 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Weld Spot Drill TIAN

• Hard metal cutter with CVD-wear protection coating
Titan-Aluminium-Nitrid
• Suitable for weld spot drill FAST DRILL (Art.-No. 5352 3)

Article No. Article Description QTY
5352 3 1 WELD SPOT DRILL TIAN 8/44MM e 10

Welding Spot Drill Tungsten Carbide 8 and 10 mm

• In combination with Welding Spot Drill FAST DRILL ideal for high-
strength car body sheets:
- Material hardness non-welded: 560 HV / 52HRC / 2,200 MPa
- Material spotted: 760 HV /62HRC / 2,600 MPa
5352 3 2
• Service life 80-120 drillings in high-strength sheets
• Afterwards up to 1000 drillings into standard sheets possible (in
combination with FAST DRILL)
• Hardness 3,100 HV (according to Vickers test procedure)
• Heat resistant up to 1,100 °C
• High sliding wear resistance 5352 3 3
• Suitable for welding spot drill FAST DRILL (Art.-no. 5352 3)

Technical Data
Type: double cutter
Material cutter: Tungsten carbide (hardness 1400 HV)
Material carrier: steel
Connection: soldered
PVD coating: AlCrN - based (hardened 3100 HV)
Temperature protection
of coating: 1100 °C
Friction coefficient: 0.24 µG (dry against steel)
Speed: 700 - 800 / max. 1000 rpm

Article No. Article Description QTY
5352 3 2 WELD SPOT DR. DURADRILL 8/44MM e 10
5352 3 3 WELD SPOT DR.DURADRILL 10/44MM e 10

Technical data subject to change.
