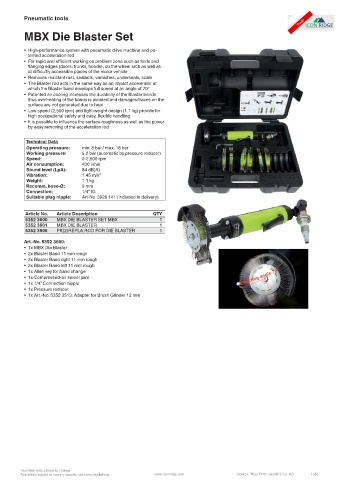

Page 1352 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

MBX Die Blaster Set

• High-performance system with pneumatic drive machine and pa-
tented acceleration rod
• For rapid and efficient working on problem zone such as folds and
flanging edges (doors, trunks, hoods), on the wheel arch as well as
at difficultly accessible places of the motor vehicle
• Removes resistant rust, sealants, varnishes, underseals, scale
• The Blaster rod acts in the same way as an impact accelerator at
which the Blaster band develops full speed at an angle of 70°
• Patented air cooling increases the durability of the Blaster bands
thus overheating of the bands is avoided and damages/traces on the
surface are not generated due to heat
• Low speed (2,500 rpm) and light-weight design (1.1 kg) provide for
high occupational safety and easy, flexible handling
• It is possible to influence the surface roughness as well as the power
by easy removing of the acceleration rod

Technical Data
Operating pressure: min. 8 bar / max. 18 bar
Working pressure: 5.2 bar (automatic by pressure reducer)
Speed: 0-2,500 rpm
Air consumption: 400 l/min
Sound level (LpA): 84 dB(A)
Vibration: 1.45 m/s²
Weight: 1.1 kg
Recomm. hose-Ø: 9 mm
Connection: 1/4“ IG
Suitable plug nipple: Art-No. 3926 141 (included in delivery)

Article No. Article Description QTY
5352 3600 MBX DIE BLASTER SET MBX 1
5352 3601 MBX DIE BLASTER 1
5352 3605 PK(2)REPLA.ROD FOR DIE BLASTER 1

Art.-No. 5352 3600:
• 1x MBX Die Blaster
• 2x Blaster Band 11 mm rough
• 2x Blaster Band right 11 mm rough
• 2x Blaster Band left 11 mm rough
• 1x Allen key for band change
• 1x Compressed-air swivel joint Effecting angle 70°
• 1x 1/4” Connection nipple
• 1x Pressure reducer
• 1x Art.-No. 5352 3513: Adapter for Brush Grinder 12 mm

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1352
