Pneumatic tools

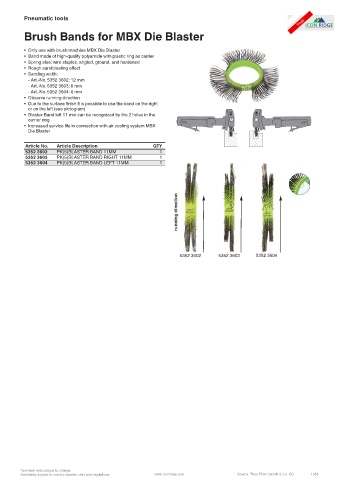

Brush Bands for MBX Die Blaster

• Only use with brush machine MBX Die Blaster
• Band made of high-quality polyamide with plastic ring as carrier
• Spring steel wire staples, angled, ground, and hardened
• Rough sandblasting effect
• Sanding width:
- Art.-No. 5352 3602: 12 mm
- Art.-No. 5352 3603: 6 mm
- Art.-No. 5352 3604: 6 mm
• Observe running direction
• Due to the surface finish it is possible to use the band on the right
or on the left (see pictogram)
• Blaster-Band left 11 mm can be recognized by the 2 holes in the
carrier ring
• Increased service life in connection with air cooling system MBX
Die Blaster

Article No. Article Description QTY
5352 3602 PK(5)BLASTER BAND 11MM 1
5352 3603 PK(5)BLASTER BAND RIGHT 11MM 1
5352 3604 PK(5)BLASTER BAND LEFT 11MM 1

running direction

5352 3602 5352 3603 5352 3604

Technical data subject to change.
