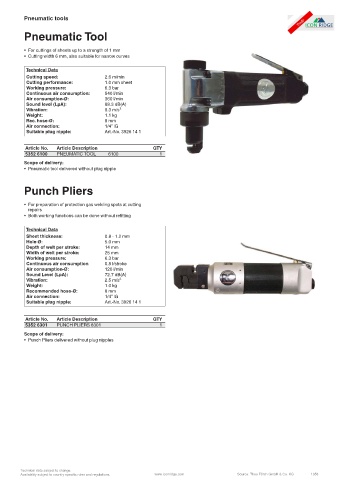

Page 1358 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Pneumatic Tool

• For cuttings of sheets up to a strength of 1 mm
• Cutting width 6 mm, also suitable for narrow curves

Technical Data
Cutting speed: 2.6 m/min
Cutting performance: 1.0 mm sheet
Working pressure: 6.3 bar
Continuous air consumption: 540 l/min
Air consumption-Ø: 360 l/min
Sound level (LpA): 88.3 dB(A)
Vibration: 8.3 m/s²
Weight: 1.1 kg
Rec. hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 6100 PNEUMATIC TOOL 6100 1
Scope of delivery:
• Pneumatic tool delivered without plug nipple

Punch Pliers

• For preparation of protection gas welding spots at cutting
repairs
• Both working functions can be done without refitting

Technical Data
Sheet thickness: 0.8 - 1.2 mm
Hole-Ø: 5.0 mm
Depth of welt per stroke: 14 mm
Width of welt per stroke: 25 mm
Working pressure: 6.3 bar
Continuous air consumption 0.8 l/stroke
Air consumption-Ø: 120 l/min
Sound Level (LpA): 72.7 dB(A)
Vibration: 2.5 m/s²
Weight: 1.0 kg
Recommended hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 6301 PUNCH PLIERS 6301 1
Scope of delivery:
• Punch Pliers delivered without plug nipples

Technical data subject to change.
