P. 160
= + 4 V
= V OC

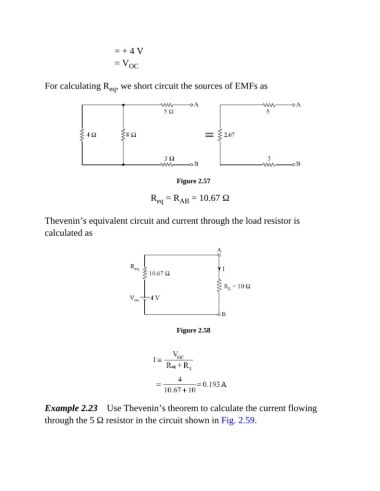

For calculating R , we short circuit the sources of EMFs as
eq
Figure 2.57
R = R AB = 10.67 Ω
eq
Thevenin’s equivalent circuit and current through the load resistor is
calculated as
Figure 2.58
Example 2.23 Use Thevenin’s theorem to calculate the current flowing
through the 5 Ω resistor in the circuit shown in Fig. 2.59.
