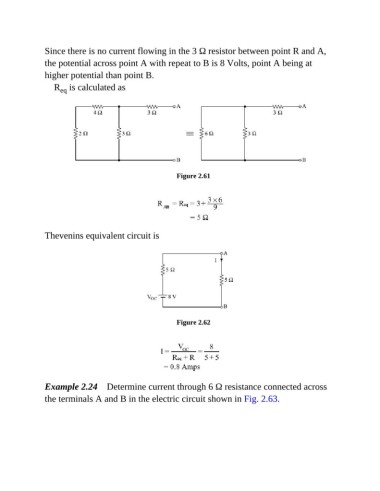

Since there is no current flowing in the 3 Ω resistor between point R and A,
the potential across point A with repeat to B is 8 Volts, point A being at
higher potential than point B.
R is calculated as
eq
Figure 2.61
Thevenins equivalent circuit is
Figure 2.62
Example 2.24 Determine current through 6 Ω resistance connected across
the terminals A and B in the electric circuit shown in Fig. 2.63.
