P. 177

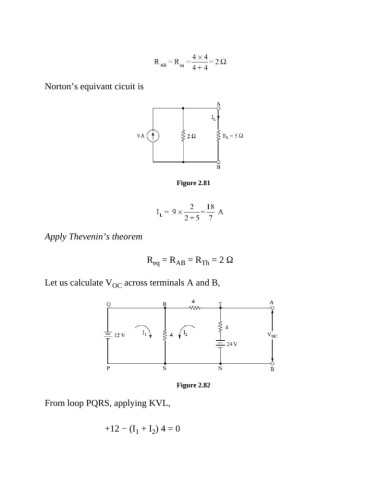

Norton’s equivant cicuit is
Figure 2.81
Apply Thevenin’s theorem
R = R AB = R = 2 Ω
eq
Th
Let us calculate V OC across terminals A and B,
Figure 2.82
From loop PQRS, applying KVL,
+12 − (I + I ) 4 = 0
2
1
