Page 182 - Basic Electrical Engineering
P. 182

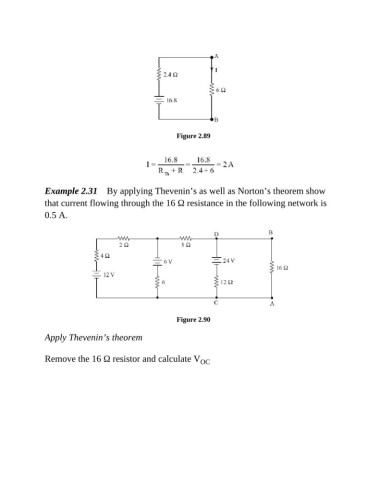

Figure 2.89
Example 2.31 By applying Thevenin’s as well as Norton’s theorem show
that current flowing through the 16 Ω resistance in the following network is
0.5 A.
Figure 2.90
Apply Thevenin’s theorem
Remove the 16 Ω resistor and calculate V OC
