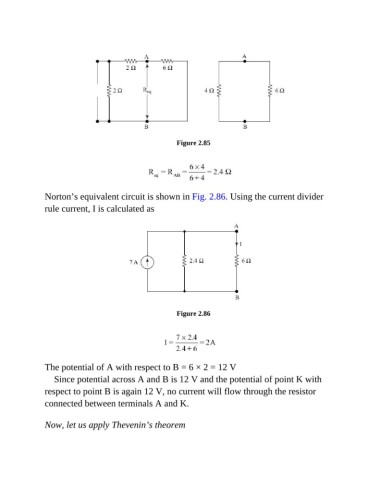

Figure 2.85
Norton’s equivalent circuit is shown in Fig. 2.86. Using the current divider
rule current, I is calculated as
Figure 2.86
The potential of A with respect to B = 6 × 2 = 12 V
Since potential across A and B is 12 V and the potential of point K with
respect to point B is again 12 V, no current will flow through the resistor
connected between terminals A and K.
Now, let us apply Thevenin’s theorem
