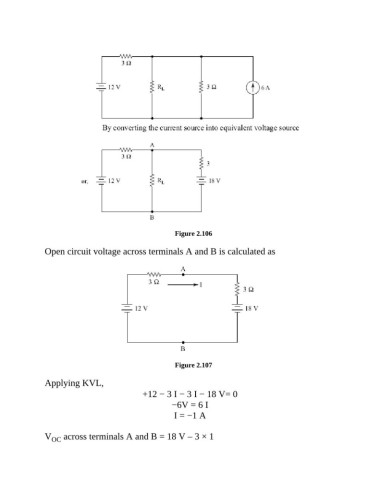

Figure 2.106
Open circuit voltage across terminals A and B is calculated as
Figure 2.107
Applying KVL,
+12 − 3 I − 3 I − 18 V= 0
−6V = 6 I
I = −1 A
V OC across terminals A and B = 18 V – 3 × 1
