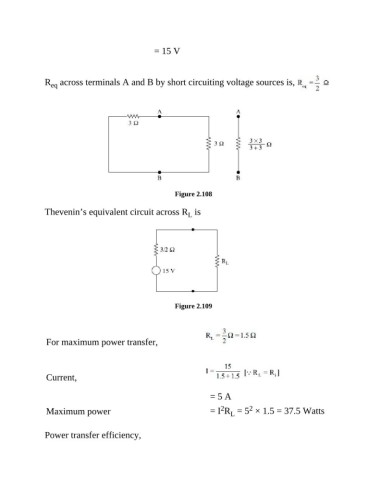

P. 197
= 15 V
R across terminals A and B by short circuiting voltage sources is,
eq
Figure 2.108
Thevenin’s equivalent circuit across R is
L
Figure 2.109
For maximum power transfer,
Current,
= 5 A
2
2
Maximum power = I R = 5 × 1.5 = 37.5 Watts
L
Power transfer efficiency,
