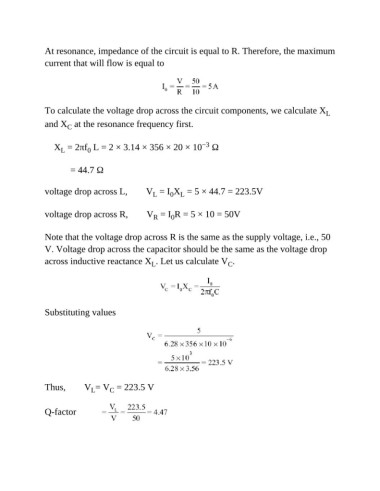

At resonance, impedance of the circuit is equal to R. Therefore, the maximum
current that will flow is equal to

To calculate the voltage drop across the circuit components, we calculate X L
and X at the resonance frequency first.
C

−3
X = 2πf L = 2 × 3.14 × 356 × 20 × 10 Ω
0
L
= 44.7 Ω

voltage drop across L, V = I X = 5 × 44.7 = 223.5V
0 L
L
voltage drop across R, V = I R = 5 × 10 = 50V
0
R

Note that the voltage drop across R is the same as the supply voltage, i.e., 50

V. Voltage drop across the capacitor should be the same as the voltage drop
across inductive reactance X . Let us calculate V .
L
C

Substituting values

Thus, V = V = 223.5 V
L
C

Q-factor
