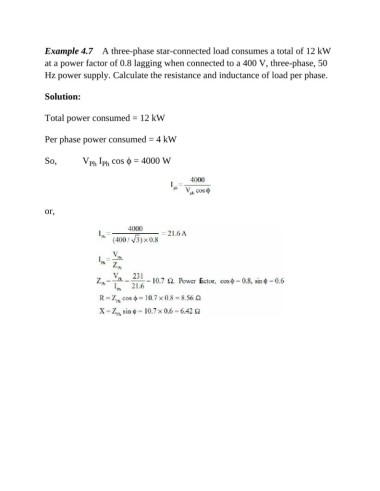

Example 4.7 A three-phase star-connected load consumes a total of 12 kW
at a power factor of 0.8 lagging when connected to a 400 V, three-phase, 50
Hz power supply. Calculate the resistance and inductance of load per phase.

Solution:

Total power consumed = 12 kW

Per phase power consumed = 4 kW

So, V I cos ϕ = 4000 W
Ph Ph

or,
