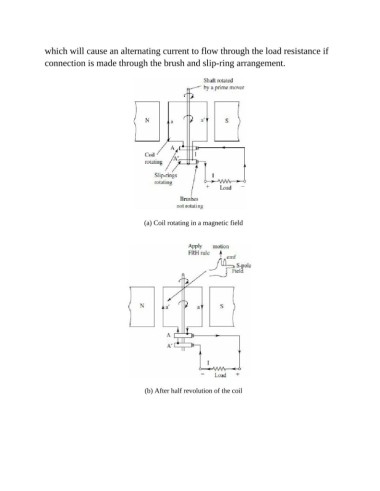

which will cause an alternating current to flow through the load resistance if
connection is made through the brush and slip-ring arrangement.
(a) Coil rotating in a magnetic field
(b) After half revolution of the coil
