P. 794

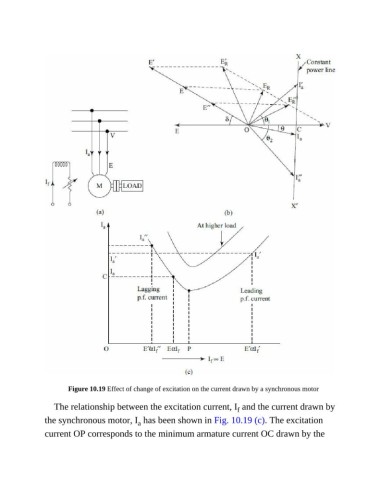

Figure 10.19 Effect of change of excitation on the current drawn by a synchronous motor
The relationship between the excitation current, I and the current drawn by
f
the synchronous motor, I has been shown in Fig. 10.19 (c). The excitation
a
current OP corresponds to the minimum armature current OC drawn by the
