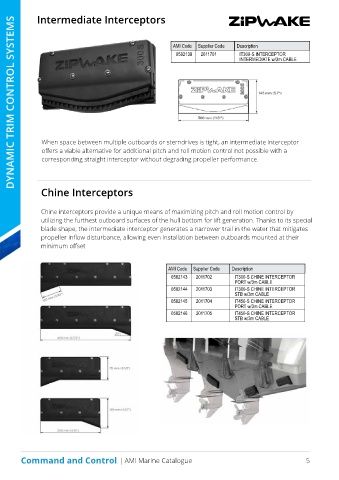

Page 12 - Catalogue-test

Intermediate Interceptors
DYNAMIC TRIM CONTROL SYSTEMS
DYNAMIC TRIM CONTROL SYSTEMS

AMI Code Supplier Code Description
0582139 2011701 IT300-S INTERCEPTOR
INTERMEDIATE w/3m CABLE

When space between multiple outboards or sterndrives is tight, an intermediate interceptor
offers a viable alternative for additional pitch and roll motion control not possible with a
corresponding straight interceptor without degrading propeller performance.

Chine Interceptors

Chine interceptors provide a unique means of maximizing pitch and roll motion control by
utilizing the furthest outboard surfaces of the hull bottom for lift generation. Thanks to its special
blade shape, the intermediate interceptor generates a narrower trail in the water that mitigates
propeller inflow disturbance, allowing even installation between outboards mounted at their
minimum offset

AMI Code Supplier Code Description
0582143 2011702 IT300-S CHINE INTERCEPTOR
PORT w/3m CABLE
0582144 2011703 IT300-S CHINE INTERCEPTOR
STB w/3m CABLE
0582145 2011704 IT450-S CHINE INTERCEPTOR
PORT w/3m CABLE
0582146 2011705 IT450-S CHINE INTERCEPTOR
STB w/3m CABLE

Command and Control | AMI Marine Catalogue 5
