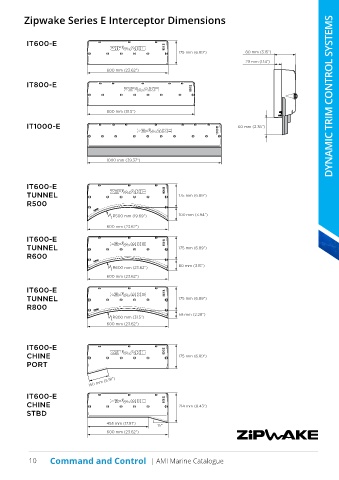

Zipwake Series E Interceptor Dimensions
4.3 DIMENSIONS

IT600-E

175 mm (6.89”) 80 mm (3.15”)
29 mm (1.14”)
600 mm (23.62”)

IT800-E DYNAMIC TRIM CONTROL SYSTEMS

800 mm (31.5”)

IT1000-E 60 mm (2.36”)

1000 mm (39.37”)

IT600-E
TUNNEL 175 mm (6.89”)
R500

R500 mm (19.69”) 100 mm (3.94”)
600 mm (23.62”)
IT600-E
TUNNEL 175 mm (6.89”)
R600

R600 mm (23.62”) 80 mm (3.15”)
600 mm (23.62”)
IT600-E
TUNNEL 175 mm (6.89”)
R800
58 mm (2.28”)
R800 mm (31.5”)
600 mm (23.62”)

IT600-E
CHINE 175 mm (6.89”)
PORT

150 mm (5.91”)

IT600-E
CHINE 214 mm (8.43”)
STBD
455 mm (17.91”) 15°
600 mm (23.62”)

14 ZIPWAKE DYNAMIC TRIM CONTROL SYSTEM - SERIES E
