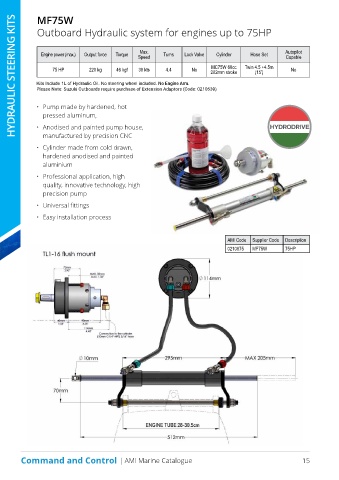

MF75W
HYDRAULIC STEERING KITS
DYNAMIC TRIM CONTROL SYSTEMS
Outboard Hydraulic system for engines up to 75HP

Max.
Engine power (max.) Output force Torque Speed Turns Lock Valve Cylinder Hose Set Autopilot
Capable
MC75W 68cc
75 HP 220 kg 46 kgf 30 kts 4.4 No 202mm stroke Twin 4.5 +4.5m No
(15’)
Kits Include 1L of Hydraulic Oil. No steering wheel included. No Engine Arm.
Please Note: Suzuki Outboards require purchase of Extension Adaptors (Code: 0210539)

• Pump made by hardened, hot
pressed aluminum,

• Anodised and painted pump house,
manufactured by precision CNC
• Cylinder made from cold drawn,
hardened anodised and painted
aluminium

• Professional application, high
quality, innovative technology, high
precision pump
• Universal fittings

• Easy installation process

AMI Code Supplier Code Description
0210075 MF75W 75HP
