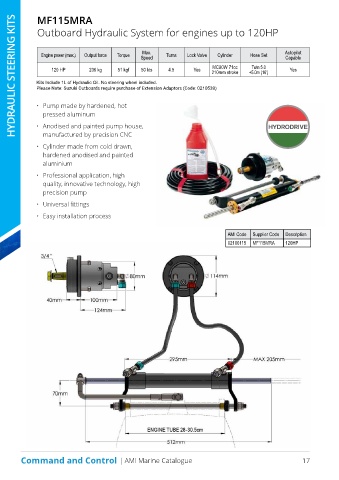

MF115MRA
HYDRAULIC STEERING KITS
DYNAMIC TRIM CONTROL SYSTEMS
Outboard Hydraulic System for engines up to 120HP

Max.
Engine power (max.) Output force Torque Speed Turns Lock Valve Cylinder Hose Set Autopilot
Capable
Twin 5.0
MC90W 71cc
120 HP 236 kg 51 kgf 50 kts 4.5 Yes 210mm stroke +5.0m (16’) Yes
Kits Include 1L of Hydraulic Oil. No steering wheel included.
Please Note: Suzuki Outboards require purchase of Extension Adaptors (Code: 0210539)

• Pump made by hardened, hot
pressed aluminum

• Anodised and painted pump house,
manufactured by precision CNC

• Cylinder made from cold drawn,
hardened anodised and painted
aluminium

• Professional application, high
quality, innovative technology, high
precision pump

• Universal fittings
• Easy installation process

AMI Code Supplier Code Description
02100115 MF115MRA 120HP
