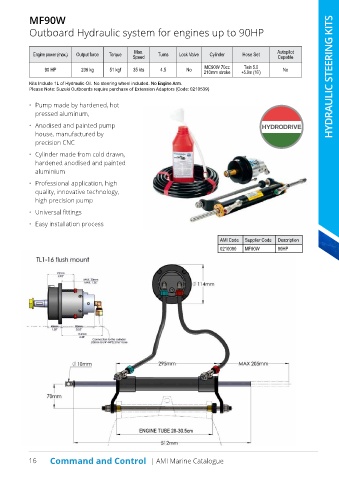

MF90W

Outboard Hydraulic system for engines up to 90HP

Max.
Engine power (max.) Output force Torque Speed Turns Lock Valve Cylinder Hose Set Autopilot
Capable
Twin 5.0
MC90W 70cc
90 HP 236 kg 51 kgf 35 kts 4.5 No 210mm stroke +5.0m (16’) No
Kits Include 1L of Hydraulic Oil. No steering wheel included. No Engine Arm. HYDRAULIC STEERING KITS
Please Note: Suzuki Outboards require purchase of Extension Adaptors (Code: 0210539)

• Pump made by hardened, hot
pressed aluminum,
• Anodised and painted pump
house, manufactured by
precision CNC

• Cylinder made from cold drawn,
hardened anodised and painted
aluminium
• Professional application, high
quality, innovative technology,
high precision pump

• Universal fittings
• Easy installation process

AMI Code Supplier Code Description
0210090 MF90W 90HP

16 Command and Control | AMI Marine Catalogue
