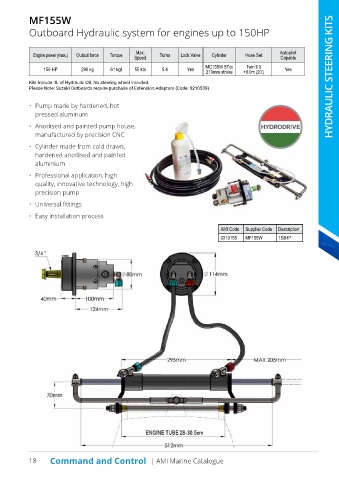

MF155W

Outboard Hydraulic system for engines up to 150HP

Max.
Engine power (max.) Output force Torque Speed Turns Lock Valve Cylinder Hose Set Autopilot
Capable
Twin 6.0
150 HP 290 kg 61 kgf 55 kts 5.4 Yes MC155W 87cc +6.0m (20’) Yes
210mm stroke
Kits Include 1L of Hydraulic Oil. No steering wheel included. HYDRAULIC STEERING KITS
Please Note: Suzuki Outboards require purchase of Extension Adaptors (Code: 0210539)

• Pump made by hardened, hot
pressed aluminum

• Anodised and painted pump house,
manufactured by precision CNC

• Cylinder made from cold drawn,
hardened anodised and painted
aluminium

• Professional application, high
quality, innovative technology, high
precision pump

• Universal fittings
• Easy installation process

AMI Code Supplier Code Description
0210155 MF155W 150HP
