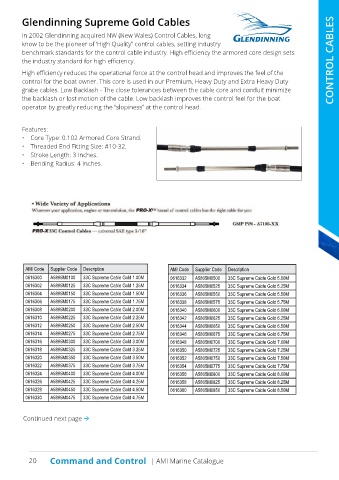

Page 27 - Catalogue-test

Glendinning Supreme Gold Cables

In 2002 Glendinning acquired NW (New Wales) Control Cables, long
know to be the pioneer of ‘High Quality” control cables, setting industry
benchmark standards for the control cable industry. High efficiency the armored core design sets
the industry standard for high efficiency. CONTROL CABLES

High efficiency reduces the operational force at the control head and improves the feel of the
control for the boat owner. This core is used in our Premium, Heavy Duty and Extra Heavy Duty
grabe cables. Low Backlash - The close tolerances between the cable core and conduit minimize
the backlash or lost motion of the cable. Low backlash improves the control feel for the boat
operator by greatly reducing the “slopiness” at the control head.

Features:
• Core Type: 0.102 Armored Core Strand.
• Threaded End Fitting Size: #10-32.
• Stroke Length: 3 Inches.
• Bending Radius: 4 Inches.

AMI Code Supplier Code Description AMI Code Supplier Code Description
0616300 A5805M0100 33C Supreme Cable Gold 1.00M 0616332 A5805M0500 33C Supreme Cable Gold 5.00M
0616302 A5805M0125 33C Supreme Cable Gold 1.25M 0616334 A5805M0525 33C Supreme Cable Gold 5.25M
0616304 A5805M0150 33C Supreme Cable Gold 1.50M 0616336 A5805M0550 33C Supreme Cable Gold 5.50M
0616306 A5805M0175 33C Supreme Cable Gold 1.75M 0616338 A5805M0575 33C Supreme Cable Gold 5.75M
0616308 A5805M0200 33C Supreme Cable Gold 2.00M 0616340 A5805M0600 33C Supreme Cable Gold 6.00M
0616310 A5805M0225 33C Supreme Cable Gold 2.25M 0616342 A5805M0625 33C Supreme Cable Gold 6.25M
0616312 A5805M0250 33C Supreme Cable Gold 2.50M 0616344 A5805M0650 33C Supreme Cable Gold 6.50M
0616314 A5805M0275 33C Supreme Cable Gold 2.75M 0616346 A5805M0675 33C Supreme Cable Gold 6.75M
0616316 A5805M0300 33C Supreme Cable Gold 3.00M 0616348 A5805M0700 33C Supreme Cable Gold 7.00M
0616318 A5805M0325 33C Supreme Cable Gold 3.25M 0616350 A5805M0725 33C Supreme Cable Gold 7.25M
0616320 A5805M0350 33C Supreme Cable Gold 3.50M 0616352 A5805M0750 33C Supreme Cable Gold 7.50M
0616322 A5805M0375 33C Supreme Cable Gold 3.75M 0616354 A5805M0775 33C Supreme Cable Gold 7.75M
0616324 A5805M0400 33C Supreme Cable Gold 4.00M 0616356 A5805M0800 33C Supreme Cable Gold 8.00M
0616326 A5805M0425 33C Supreme Cable Gold 4.25M 0616358 A5805M0825 33C Supreme Cable Gold 8.25M
0616328 A5805M0450 33C Supreme Cable Gold 4.50M 0616360 A5805M0850 33C Supreme Cable Gold 8.50M
0616330 A5805M0475 33C Supreme Cable Gold 4.75M

Continued next page 

20 Command and Control | AMI Marine Catalogue
