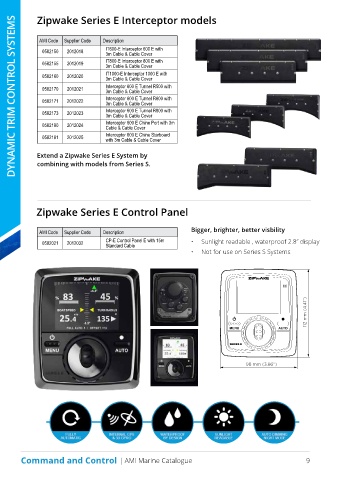

Zipwake Series E Interceptor models
DYNAMIC TRIM CONTROL SYSTEMS
DYNAMIC TRIM CONTROL SYSTEMS
3.2 SPECIFICATIONS
AMI Code Supplier Code Description
0582150 2012018 IT600-E Interceptor 600 E with Model CP-E
3m Cable & Cable Cover
2.8’’ IPS color TFT LCD, 320 x 240 pixels,
0582155 2012019 IT800-E Interceptor 800 E with Display double-sided, anti-reflection coated window
3m Cable & Cable Cover
0582160 2012020 IT1000-E Interceptor 1000 E with Internal sensors 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light
3m Cable & Cable Cover
12 - 32 V DC
Supply voltage
0582170 2012021 Interceptor 600 E Tunnel R500 with Power consumption 10 W max
3m Cable & Cable Cover
0582171 2012022 Interceptor 600 E Tunnel R600 with Operating temperature -20° to +85°C (-4° to +185°F)
3m Cable & Cable Cover
0582173 2012023 Interceptor 600 E Tunnel R800 with Storage temperature -40° to +90°C (-40° to +194°F)
3m Cable & Cable Cover
0582180 2012024 Interceptor 600 E Chine Port with 3m Waterproof rating IP67 / IP64 (front / back)
Cable & Cable Cover
Compass safe distance
0.5 m (1.7 ft)
0582181 2012025 Interceptor 600 E Chine Starboard Compliance CE, FCC
with 3m Cable & Cable Cover
Weight 0.22 kg (0.49 lbs)
Extend a Zipwake Series E System by Mounting Surface, flush or gimbal bracket mount
combining with models from Series S.

3 CONTROL PANEL 3.3 INTERFACES
• I-BUS IN (CAN bus) • USB Device Port (Type A)
Zipwake’s stylish control panel is carefully designed • I-BUS OUT (CAN bus) • USB Host Port (Type B)
Zipwake Series E Control Panel • NMEA 2000 • External GPS
to be user-friendly and intuitive to allow the driver
to focus on the right thing – enjoying the boat ride!
(NMEA 0183 / RS232 auto
• Key sense
The panel’s two unique control wheels provide
AMI Code Supplier Code Description Bigger, brighter, better visbility baud-rate sensing)
easy, quick and intuitive manual control of running
0582021 2012032 CP-E Control Panel E with 15m • Sunlight readable , waterproof 2.8” display
trim, heel or heading. However, the system normally
Standard Cable
operates in automatic control mode, which is • Not for use on Series S Systems
enabled by a single press on the AUTO button. 3.4 DIMENSIONS
In this mode, the built-in high-frequency GPS,
3D gyro sensors and robust motion controller
automatically ensure dynamic elimination of un-
comfortable and dangerous boat pitch and roll. 15 mm (0.59”)

The system provides continuous feedback of boat 33.5 mm (1.32”)
speed, turning radius, pitch and roll angle, as well
as the interceptors’ positions, on a 2.8” sunlight- 112 mm (4.41”)
readable wide viewing color display.

The panel’s waterproof design withstands harsh marine conditions in open boats or on a flybridge.
The sockets for connecting peripherals are located on the rear of the panel. In addition to 28 mm (1.10”)
connectors for the system’s distribution unit and multiple control panels, external GPS and
NMEA2000 equipment can be connected. The system can also be connected to the ignition key
for automatic system power-on. A waterproof cap conceals the USB interface that allows for future
98 mm (3.86”)
software upgrades and ensures that the Zipwake Dynamic Trim Control System is future-proof.

3.5 ORDERING DATA
3.1 FEATURES
Model CP-E
Part No. 2012032 with Standard Cable 15 m

• Included in Kit Boxes • Available as an accessory • Available as a spare part

ZIPWAKE DYNAMIC TRIM CONTROL SYSTEM - SERIES E 9
• Fully automatic • Up to four control panels in the system
Command and Control | AMI Marine Catalogue 9
- Dynamic pitch and roll control
• Surface, flush or gimbal bracket mount
- Steering and turn enhancement
• Manages installation configurations from
• Built-in GPS and motion sensors 1 up to 6 Series E or any mix with Series S
• Unique and intuitive 3D controls interceptors
• Sunlight readable color display • Allows configuration of interceptor pair
function
• Instant state user feedback
• Auto Cleaning
• Auto power on/off via ignition key sense - Selectable periodic cleaning cycle
• Full range of electrical interfaces - Prevents fouling inside the interceptor
• Waterproof • Monitored and/or controlled from external
devices, e.g. multifunction displays or
• Auto dimming / night mode plotters via its NMEA 2000 interface
• Upgradable via USB stick

8 ZIPWAKE DYNAMIC TRIM CONTROL SYSTEM - SERIES E
