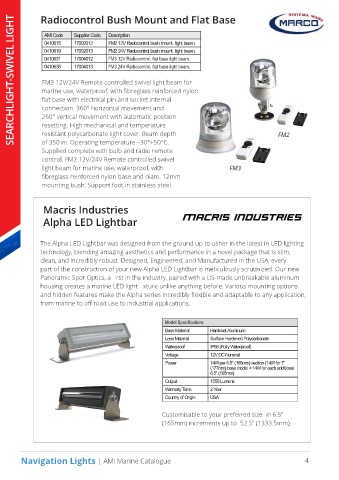

Page 69 - Catalogue-test

Radiocontrol Bush Mount and Flat Base
DYNAMIC TRIM CONTROL SYSTEMS
SEARCHLIGHT-SWIVEL LIGHT
AMI Code Supplier Code Description
0410615 17002012 FM2 12V Radocontrol bush mount. light beam.
0410619 17002013 FM2 24V Radocontrol bush mount. light beam.
0410631 17004012 FM3 12V Radiocontrol. flat base light beam.
0410635 17004013 FM3 24V Radiocontrol. flat base light beam.

FM3 12V/24V Remote controlled swivel light beam for
marine use, waterproof, with fibreglass reinforced nylon
flat base with electrical pin and socket internal
connection. 360° horizontal movement and
260° vertical movement with automatic position
resetting. High mechanical and temperature
resistant polycarbonate light cover. Beam depth FM2
of 350 m. Operating temperature –30°+50°C.
Supplied complete with bulb and radio remote
control. FM2 12V/24V Remote controlled swivel
light beam for marine use, waterproof, with FM3
fibreglass reinforced nylon base and diam. 12mm
mounting bush. Support foot in stainless steel.

Macris Industries

Alpha LED Lightbar

The Alpha LED Lightbar was designed from the ground up to usher in the latest in LED lighting
technology, blending amazing aesthetics and performance in a novel package that is slim,
clean, and incredibly robust. Designed, Engineered, and Manufactured in the USA, every
part of the construction of your new Alpha LED Lightbar is meticulously scrutinized. Our new
Panoramic Spot Optics, a rst in the industry, paired with a US-made unbreakable aluminum
housing creates a marine LED light xture unlike anything before. Various mounting options
and hidden features make the Alpha series incredibly flexible and adaptable to any application,
from marine to off road use to industrial applications.

Model Specifications
Base Material Hardcoat Aluminum
Lens Material Surface Hardened Polycarbonate
Waterproof IP68 (Fully Waterproof)
Voltage 12V DC Nominal
Power 14W per 6.5” (165mm) section (14W for 7”
(177mm) base model + 14W for each additional
6.5” (165mm)
Output 1550 Lumens
Warranty Term 2 Year
Country of Origin USA

Customisable to your preferred size in 6.5”
(165mm) increments up to 52.5” (1333.5mm).

Navigation Lights | AMI Marine Catalogue 4
