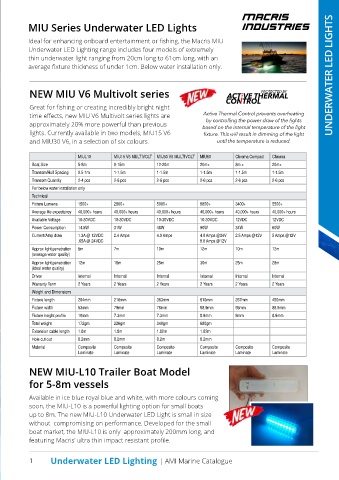

MIU Series Underwater LED Lights

Ideal for enhancing onboard entertainment or fishing, the Macris MIU
Underwater LED Lighting range includes four models of extremely
thin underwater light ranging from 20cm long to 61cm long, with an
average fixture thickness of under 1cm. Below water installation only. UNDERWATER LED LIGHTS

NEW MIU V6 Multivolt series PROTECTED BY

Great for fishing or creating incredibly bright night
time effects, new MIU V6 Multivolt series lights are Active Thermal Control prevents overheating
by controlling the power draw of the lights
approximately 20% more powerful than previous based on the internal temperature of the light
lights. Currently available in two models, MIU15 V6 fixture. This will result in dimming of the light
and MIU30 V6, in a selection of six colours. until the temperature is reduced.

MIUL10 MIU15 V6 MULTIVOLT MIU30 V6 MULTIVOLT MIU60 Chroma Compact Chroma
Boat Size 5-8m 8-15m 12-20m 20m+ 8m + 20m+
Transom/Hull Spacing 0.5-1m 1-1.5m 1-1.5m 1-1.5m 1-1.5m 1-1.5m
Transom Quantity 2-4 pcs 2-6 pcs 2-6 pcs 2-6 pcs 2-6 pcs 2-6 pcs
For below water installation only
Technical
Fixture Lumens 1500+ 2800+ 5000+ 8800+ 3400+ 5500+
Average life expectancy 40,000+ hours 40,000+ hours 40,000+ hours 40,000+ hours 40,000+ hours 40,000+ hours
Available Voltage 10-30VDC 10-30VDC 10-30VDC 10-30VDC 12VDC 12VDC
Power Consumption 14.5W 31W 48W 90W 34W 60W
Current/Amp draw 1.3A @ 12VDC 2.4 Amps 4.0 Amps 4.0 Amps @24V 2.5 Amps @12V 5 Amps @12V
.65A @ 24VDC 8.0 Amps @12V
Approx light penetration 5m 7m 10m 12m 10m 12m
(average water quality)
Approx light penetration 12m 18m 25m 30m 25m 28m
(ideal water quality)
Driver Internal Internal Internal Internal Internal Internal
Warranty Term 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years
Weight and Dimensions
Fixture length 204mm 216mm 363mm 610mm 267mm 450mm
Fixture width 53mm 79mm 78mm 88.9mm 95mm 88.9mm
Fixture height profile 10mm 7.3mm 7.3mm 8.9mm 9mm 8.9mm
Total weight 172gm 226gm 340gm 680gm
Extension cable length 1.8m 1.8m 1.82m 1.82m
Hole cut out 8.2mm 8.2mm 8.2m 8.2mm
Material Composite Composite Composite Composite Composite Composite
Laminate Laminate Laminate Laminate Laminate Laminate

NEW MIU-L10 Trailer Boat Model

for 5-8m vessels

Available in ice blue royal blue and white, with more colours coming
soon, the MIU-L10 is a powerful lighting option for small boats
up to 8m. The new MIU-L10 Underwater LED Light is small in size
without compromising on performance. Developed for the small
boat market, the MIU-L10 is only approximately 200mm long, and
featuring Macris’ ultra thin impact resistant profile.

1 Underwater LED Lighting | AMI Marine Catalogue
