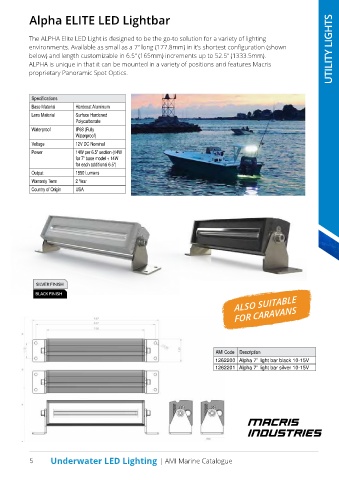

Alpha ELITE LED Lightbar

The ALPHA Elite LED Light is designed to be the go-to solution for a variety of lighting
environments. Available as small as a 7” long (177.8mm) in it’s shortest configuration (shown UTILITY LIGHTS
below) and length customizable in 6.5” (165mm) increments up to 52.5” (1333.5mm).
ALPHA is unique in that it can be mounted in a variety of positions and features Macris
proprietary Panoramic Spot Optics.

Specifications
Base Material Hardcoat Aluminum
Lens Material Surface Hardened
Polycarbonate
Waterproof IP68 (Fully
Waterproof)
Voltage 12V DC Nominal
Power 14W per 6.5” section (14W
for 7” base model + 14W
for each additional 6.5”)
Output 1550 Lumens
Warranty Term 2 Year
Country of Origin USA

SILVER FINISH
BLACK FINISH
ALSO SUITABLE
FOR CARAVANS

AMI Code Description
1262200 Alpha 7” light bar black 10-15V
1262201 Alpha 7” light bar silver 10-15V
