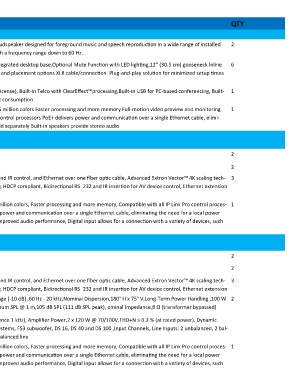

Bill Of Quantity Details

No. Product Description QTY

EXEcutive Conference Room – Cont

11 Ceiling Speaker Premier high-performance, extended-range, flush-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed 2
applications. High output and wide, 160° conical pattern with a frequency range down to 60 Hz.

12 CENTRAVERSE™ CVG12D 12” (30.5 CM) Cardioid polar pattern with tailored response for speech, Integrated desktop base,Optional Mute Function with LED lighting,12” (30.5 cm) gooseneck Inline 6
GOOSENECK MICROPHONE WITH INTEGRAT- preamp Dual-section gooseneck enables ease of positioning and placement options XLR cable/connection. Plug-and-play solution for minimized setup times
ED DESKTOP BASE AND INLINE PREAMP,

13 Audio Processor 12 Mic/Line inputs with AEC,Built-in VoIP – 2 lines +3 lines (license), Built-in Telco with ClearEffect™processing,Built-in USB for PC-based conferencing, Built- 1
in Dante for networked audio, Reduced footprint and power consumption

14 12" Table top Touch Link Pro Touch panel 12” capacitive touchscreen with 1280x800 resolution and 16 million colors Faster processing and more memory Full-motion video preview and monitoring 1
with HDMI and XTP inputs Compatible with all IP Link® Pro control processors PoE+ delivers power and communication over a single Ethernet cable, elimi-
nating the need for a local power supply - Power injector sold separately Built-in speakers provide stereo audio

Lobby

1 4k Led Display True 4k Led Display For Looby 2

2 Wall Mount Wall Mount For LED display 2

3 XTP 4K Fiber Optic Scaling Receiver for HDMI Receives video with embedded audio, bidirectional RS 232 and IR control, and Ethernet over one fiber optic cable, Advanced Extron Vector™ 4K scaling tech- 3
nology, Selectable output rates from 640x480 to 3840x2160, HDCP compliant, Bidirectional RS‑232 and IR insertion for AV device control, Ethernet extension

4 5” Wall Mount TouchLink Pro Touchpanel 5" capacitive touchscreen with 800x480 resolution and 16 million colors, Faster processing and more memory, Compatible with all IP Link Pro control proces- 1
sors, Power over Ethernet allows the touchpanel to receive power and communication over a single Ethernet cable, eliminating the need for a local power
supply - PoE injector sold separately, Built-in speaker with improved audio performance, Digital input allows for a connection with a variety of devices, such
as sensors, switches, and relays

DINING AREA

1 4k Led Display True 4k Led Display For Dining Area 2

2 Wall Mount Wall Mount For LED display 2

3 XTP 4K Fiber Optic Scaling Receiver for HDMI Receives video with embedded audio, bidirectional RS 232 and IR control, and Ethernet over one fiber optic cable, Advanced Extron Vector™ 4K scaling tech- 3

nology, Selectable output rates from 640x480 to 3840x2160, HDCP compliant, Bidirectional RS‑232 and IR insertion for AV device control, Ethernet extension
4 Wall Mount Speaker Frequency Response (+/-3 dB),75 Hz - 18 kHz,Frequency Range (-10 dB) ,60 Hz - 20 kHz,Nominal Dispersion,180° H x 75° V,Long-Term Power Handling ,100 W 2
(400 W peak),Sensitivity (SPL / 1 W @ 1 m) ,85 dB SPLMaximum SPL @ 1 m,105 dB SPL (111 dB SPL peak), ominal Impedance,8 Ω (transformer bypassed)

5 Power Amplifier Frequency Response,55 Hz - 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz), Amplifier Power,2 x 120 W @ 70/100V,THD+N ≤ 0.3 % (at rated power), Dynamic
Range 88 dB, Built-in Loudspeaker EQ,Bose Free Space® 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100 ,Input Channels, Line Inputs: 2 unbalanced, 2 bal-
anced ,age Input: 1 balanced mic/line ,Auxiliary Input: 1 unbalanced line

6 5” Wall Mount TouchLink Pro Touchpanel 5" capacitive touchscreen with 800x480 resolution and 16 million colors, Faster processing and more memory, Compatible with all IP Link Pro control proces- 1
sors, Power over Ethernet allows the touchpanel to receive power and communication over a single Ethernet cable, eliminating the need for a local power
supply - PoE injector sold separately, Built-in speaker with improved audio performance, Digital input allows for a connection with a variety of devices, such
SSB INFOSYSTEMS PRIVATE LIMITED– Confidential
as sensors, switches, and relays
