Page 295 - E2 Integrated Workbook STUDENT 2018

Answers to supplementary objective test questions

CHAPTER 15 – PROJECT MANAGEMENT TOOLS AND
TECHNIQUES

15.1 The correct statements are B, C and D.

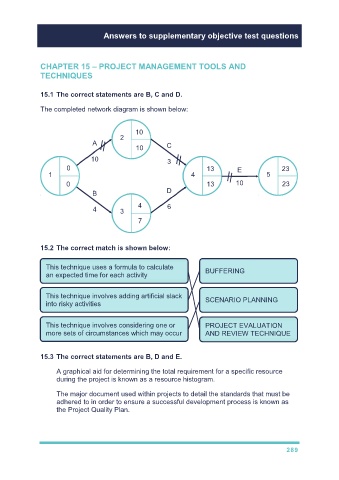

The completed network diagram is shown below:

10
2
A C
10
10 3
0 13 E 23
1 4 5
0 13 10 23
B D
4 6
4 3

7

15.2 The correct match is shown below:

This technique uses a formula to calculate BUFFERING
an expected time for each activity

This technique involves adding artificial slack SCENARIO PLANNING
into risky activities

This technique involves considering one or PROJECT EVALUATION
more sets of circumstances which may occur AND REVIEW TECHNIQUE

15.3 The correct statements are B, D and E.

A graphical aid for determining the total requirement for a specific resource
during the project is known as a resource histogram.

The major document used within projects to detail the standards that must be
adhered to in order to ensure a successful development process is known as
the Project Quality Plan.

289
