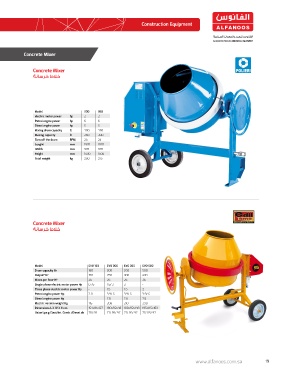

Page 19 - Alfanoos Tools & Industrial Equipment

Construction Equipment

Concrete Mixer
Concrete Mixer
‫خلاط خرسانة‬

Model hp 300 350
electric motor power hp 2 2
Petrol engine power hp 6 6
Diesel engine power lt 6 6
Mixing drum capacity lt 300 350
Maxing capacity RPM 250 300
Turn off the drum mm 24 24
Lenght mm 1970 1970
Width mm 970 970
Height kg 1490 1490
Total weight 200 215

Concrete Mixer
‫خلاط خرسانة‬

Model EVO 180 EVO 300 EVO 350 EVO 500
Drum capacity ltr 180 300 350 500
Output* ltr 150 250 300 430
Mixes per hour N* 26 26 26 26
Single phase electric motor power Hp 0.75 1.5/ 2 2 -
Three phase electric motor power Hp - 1.5 1.5 2
Petrol engine power Hp 2.8 3.9/ 6 3.9/ 6 3.9/ 6
Diesel engine power Hp -- 7.5 7.5 7.5
Electric version weight Kg 115 208 210 290
Dimensions L X W X H cm 154x81x127 180x92x48 180x92x148 195x115x163
Value Lpa g Elect/Int. Comb. /Diesel db 78/ 85 77/ 85/ 97 77/ 85/ 97 77/ 85/ 97

www.alfanoos.com.sa 19
