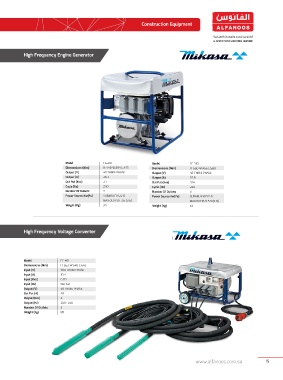

Page 15 - Alfanoos Tools & Industrial Equipment
P. 15
Construction Equipment
High Frequency Engine Generator
Model FG-210 Model FC-310
Diemensions (Mm) H: 448 W:394 L:475 Diemensions (Mm) H: 550 W:455 L:580
Output (V) 48 THREE PHASE Output (V) 48 THREE PHASE
Output (A) 25.2 Output (A) 37.8
Out Put (Kva) 2.1 Out Put (Kva) 3.14
Cycle (Hz) 240 Cycle (Hz) 240
Number Of Outlets 2 Number Of Outlets 3
Power Source Kw(Ps) SUBARU EH122-D Power Source Kw(Ps) SUBARU EH252-D
MAX.OUTPUT 2.6 (3.5) MAX.OUTPUT 5.9 (8.0)
Weight (Kg) 34 Weight (Kg) 53
High Frequency Voltage Converter
Model FC-401
Diemensions (Mm) H: 553 W:540 L:643
Input (V) 380 THREE PHASE
Input (A) 10.4
Input (Kva) 6.83
Input (Hz) 50/ 60
Output (V) 48 THREE PHASE
Out Put (A) 48
Output (Kva) 4
Output (Hz) 200- 240
Number Of Outlets 3
Weight (Kg) 80
