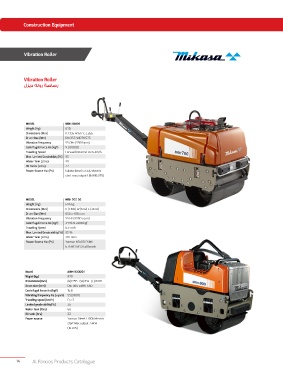

Page 14 - Alfanoos Tools & Industrial Equipment

Construction Equipment
Vibration Roller
Vibration Roller
‫رصاصة روله ديزل‬

MODEL MRH-501DS

Weight (Kg) 530

Dimensions (Mm) H:1.195 W:617 L:2.265

Drum Size (Mm) DIA:355 WIDTH:575

Vibration Frequency 55.0Hz (3300vpm).

Centrifugal Force Kn (Kgf) 9.8 (1000)

Traveling Speed Forward/Reverse 03.5-km/h.

Max. Limited Gradeability(%) 35

Water Tank (Litrs) 30

Oil Tanks (Litrs) 22

Power Source Kw (Ps) kubota diesel EA330 electric

start max,output4.6kW(6.3PS)

MODEL MRH 700 DS

Weight (Kg) 695 kg

Dimensions (Mm) H (1.180) W (692) L (2670)

Drum Size (Mm) 650 x 406 mm

Vibration Frequency 55 Hz (3300 v.p.m)

Centrifugal Force Kn (Kgf) 23.5k.N 2400 kgf

Traveling Speed 03- m/h

Max. Limited Grade ability(%) 35 %

Water Tank (Litrs) 40 Liters

Power Source Kw (Ps) Yanmar NFAD8-EKMK

5.7kW(7.8PS) Cell/crank

Model MRH-900DSY
Wight (kg) 870
Dimensions(mm) (H)1255 (W)704 (L)2600
Drum size (mm) Dia: 406 width: 650
Centrifugal force Kn (kgf) 16.8
Vibrating frequency Hz (v.p.m) 55(3300)
Traveling speed(km/h) 03
Limited grade ability(%) 35
Water tank (ltrs) 60
Oil tank (ltrs) 22
Power source Yanmar Diesel L100N electric
start Max output 7.4kW
(10.0PS)

14 Al Fanoos Products Catalogue
