Construction Equipment

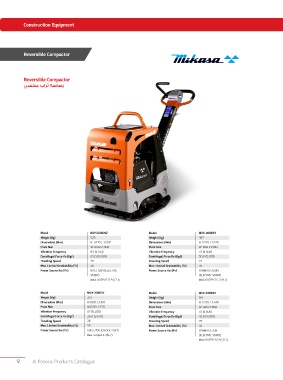

Reversible Compactor
Reversible Compactor
‫رصاصه تراب عكسي‬

Model MVH-508DSZ Model MVH-408DSY
Weight (Kg) 525 Weight (Kg) 407
Dimensions (Mm) H: 1.070 L:1.600 Dimensions (Mm) H: 1.030 L:1.570
Plate Size W: 650 L1:900 Plate Size W: 650 L1:900
Vibration Frequency 69 (4.150) Vibration Frequency 73 (4.400)
Centrifugal Force Kn (Kgf) 65.0 (6.600) Centrifugal Force Kn (Kgf) 50.0 (5.100)
Traveling Speed 29 Traveling Speed 27
Max. Limited Gradeability (%) 35 Max. Limited Gradeability (%) 35
Power Source Kw (Ps) HATZ 1D81 (ELECTRIC Power Source Kw (Ps) YANMAR L100N
START) (ELECTRIC START)
MAX.OUTPUT 8.9 (12.1) Model MAX.OUTPUT 6.3 (9.1)
Weight (Kg)
Model MVH-208DSY Dimensions (Mm) MVH-308DSY
Weight (Kg) 237 Plate Size 341
Dimensions (Mm) H:1.010 L:1.310 Vibration Frequency H: 1.030 L:1.540
Plate Size W:600 L1:720 Centrifugal Force Kn (Kgf) W: 445 L1:860
Vibration Frequency 87 (5.200) Traveling Speed 73 (4.400)
Centrifugal Force Kn (Kgf) 35.0 (3.570) Max. Limited Gradeability (%) 45.0 (4.600)
Traveling Speed 26 Power Source Kw (Ps) 29
Max. Limited Gradeability (%) 35 35
Power Source Kw (Ps) Hatz L70n (electric start) YANMAR L70N
Max. output 4.9(6.7) (ELECTRIC START)
MAX.OUTPUT 8.9 (12.1)

12 Al Fanoos Products Catalogue
