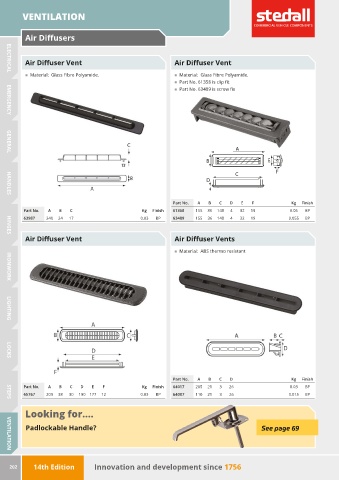

Page 204 - Stedall Parts Catalogue 14th Edition

VENTILATION

Air Diffusers

Air Diffuser Vent Air Diffuser Vent

ELECTRICAL
„ Material: Glass Fibre Polyamide. „ Material: Glass Fibre Polyamide.
„ Part No. 61358 is clip fit
„ Part No. 63489 is screw fix

EMERGENCY

A
GENERAL
B E
F
C
D

HANDLES
Part No. A B C D E F Kg Finish
Part No. A B C Kg Finish 61358 155 36 148 4 32 19 0.05 BP

63987 240 24 17 0.03 BP 63489 155 36 148 4 32 19 0.055 BP

Air Diffuser Vent Air Diffuser Vents
HINGES

„ Material: ABS thermo resistant

IRONWORK

LIGHTING

LOCKS

Part No. A B C D Kg Finish
Part No. A B C D E F Kg Finish 64017 205 21 3 26 0.03 BP
65767 209 38 30 190 177 12 0.03 BP 64007 110 21 3 26 0.015 BP
STEPS
Looking for....

Padlockable Handle? See page 69
