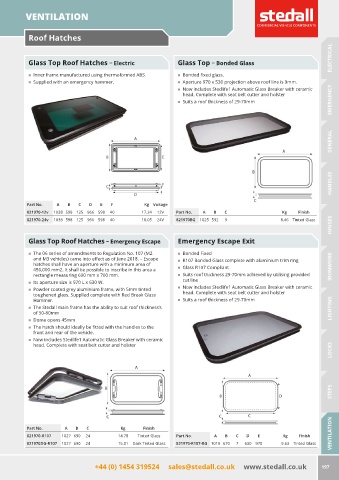

VENTILATION
          VENTILATION


           Roof Hatches

                                                                                                                     ELECTRICAL

           Glass Top Roof Hatches — Electric                   Glass Top — Bonded Glass

           „  Inner frame manufactured using thermoformed ABS.  „  Bonded fixed glass.
           „  Supplied with an emergency hammer.               „  Aperture 970 x 530 projection above roof line is 9mm.
                                                               „  Now includes Stedlife1 Automatic Glass Breaker with ceramic
                                                                 head. Complete with seat belt cutter and holster
                                                               „  Suits a roof thickness of 29-70mm                  EMERGENCY




                                                                                                                     GENERAL








                                                                                                                     HANDLES




          Part No.   A   B   C  D   E   F           Kg  Voltage
          821970-12v  1038 598 125 966 598  40     17.24  12V  Part No.  A  B   C                   Kg    Finish
                                                                                                                     HINGES
          821970-24v  1038 598 125 966 598  40     18.05  24V  821970BG  1025 592  9                8.46  Tinted Glass


           Glass Top Roof Hatches — Emergency Escape           Emergency Escape Exit

           „  The 06 series of amendments to Regulation No. 107 (M2   „  Bonded Fixed
             and M3 vehicles) came into effect as of June 2018. – Escape   „  R107 Bonded Glass complete with aluminium trim ring
             hatches shall have an aperture with a minimum area of
             450,000 mm2. It shall be possible to inscribe in this area a   „  Glass R107 Compliant                  IRONWORK
             rectangle measuring 600 mm x 700 mm.              „  Suits roof thickness 29-70mm achieved by utilising provided
           „  Its aperture size is 970 L x 630 W.                cut line
           „  Powder coated grey aluminium frame, with 5mm tinted   „  Now includes Stedlife1 Automatic Glass Breaker with ceramic
             toughened glass. Supplied complete with Red Break Glass   head. Complete with seat belt cutter and holster
             Hammer.                                           „  Suits a roof thickness of 29-70mm
           „  The Stedall main frame has the ability to suit roof thickness’s                                        LIGHTING
             of 50-80mm
           „  Dome opens 45mm
           „  The hatch should ideally be fitted with the handles to the
             front and rear of the vehicle.
           „  Now includes Stedlife1 Automatic Glass Breaker with ceramic
                                                                                                                     LOCKS
             head. Complete with seat belt cutter and holster






                                                                                                                     STEPS





                                                                                                                     VENTILATION
          Part No.      A   B  C           Kg      Finish
          821970-R107  1027 690  24        14.78  Tinted Glass  Part No.    A   B   C   D   E       Kg    Finish
          821970DG-R107  1027 690  24      15.01  Dark Tinted Glass  821970-R107-BG 1010 670  7  630 970  9.63  Tinted Glass


                                  +44 (0) 1454 319524     sales@stedall.co.uk     www.stedall.co.uk               197
