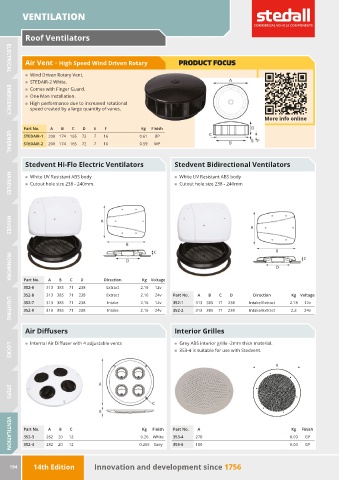

Page 196 - Stedall Parts Catalogue 14th Edition

VENTILATION

Roof Ventilators

Air Vent — High Speed Wind Driven Rotary PRODUCT FOCUS

ELECTRICAL
„ Wind Driven Rotary Vent.
„ STEDAIR-2 White.
„ Comes with Finger Guard.
„ One Man Installation.
„ High performance due to increased rotational
speed created by a large quantity of vanes.
EMERGENCY
More info online
Part No. A B C D E F Kg Finish
STEDAIR-1 200 174 165 72 7 16 0.61 BP
STEDAIR-2 200 174 165 72 7 16 0.59 WP

GENERAL
Stedvent Hi-Flo Electric Ventilators Stedvent Bidirectional Ventilators

„ White UV Resistant ABS body „ White UV Resistant ABS body
„ Cutout hole size 238 - 240mm. „ Cutout hole size 238 - 240mm

HANDLES

HINGES

Part No. A B C D Direction Kg Voltage
IRONWORK
352-6 313 385 71 238 Extract 2.16 12v
352-8 313 385 71 238 Extract 2.16 24v Part No. A B C D Direction Kg Voltage
352-7 313 385 71 238 Intake 2.16 12v 352-1 313 385 71 238 Intake/Extract 2.18 12v
352-9 313 385 71 238 Intake 2.16 24v 352-2 313 385 71 238 Intake/Extract 2.2 24v

LIGHTING
Air Diffusers Interior Grilles

„ Internal Air Diffuser with 4 adjustable vents „ Grey ABS interior grille -2mm thick material.
„ 353-4 is suitable for use with Stedvent.
LOCKS
A

STEPS

Part No. A B C Kg Finish Part No. A Kg Finish
352-3 282 20 12 0.26 White 353-4 270 0.09 GP
352-4 282 20 12 0.265 Grey 353-6 180 0.04 GP
VENTILATION

194 14th Edition Innovation and development since 1756
