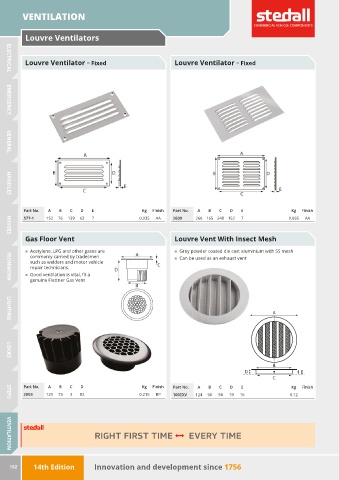

Page 194 - Stedall Parts Catalogue 14th Edition

VENTILATION

Louvre Ventilators

Louvre Ventilator — Fixed Louvre Ventilator — Fixed

ELECTRICAL

EMERGENCY

GENERAL

HANDLES

Part No. A B C D E Kg Finish Part No. A B C D E Kg Finish

577-1 152 76 139 63 7 0.035 AA 2609 260 165 248 152 7 0.085 AA

Gas Floor Vent Louvre Vent With Insect Mesh
HINGES

„ Acetylene, LPG and other gases are „ Grey powder coated die cast aluminium with SS mesh
commonly carried by tradesmen „ Can be used as an exhaust vent
such as welders and motor vehicle
repair technicians.
„ Good ventilation is vital, fit a
genuine Flettner Gas Vent
IRONWORK

A
LIGHTING

LOCKS
B
D E
C
Part No. A B C D Kg Finish Part No. A B C D E Kg Finish
2003 120 73 3 82 0.215 BP 100EXV 124 90 98 19 16 0.12
STEPS

RIGHT FIRST TIME  EVERY TIME

VENTILATION

192 14th Edition Innovation and development since 1756
