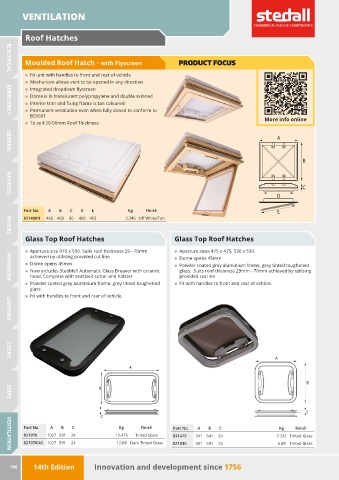

Page 198 - Stedall Parts Catalogue 14th Edition

VENTILATION

Roof Hatches

Moulded Roof Hatch — with Flyscreen PRODUCT FOCUS

ELECTRICAL
„ Fit unit with handles to front and rear of vehicle
„ Mechanism allows vent to be opened in any direction
„ Integrated dropdown flyscreen
„ Dome is in translucent polypropylene and double skinned
„ Interior trim and fixing frame is tan coloured
„ Permanent ventilation even when fully closed to conform to
BS5601 More info online
EMERGENCY
„ To suit 20-50mm Roof Thickness

A

GENERAL
B

C
D
HANDLES

Part No. A B C D E Kg Finish E

821400N 460 460 80 400 403 2.345 Off White/Tan

Glass Top Roof Hatches Glass Top Roof Hatches
HINGES

„ Aperture size 970 x 530. Suits roof thickness 29 - 70mm „ Aperture sizes 475 x 475, 530 x 530.
achieved by utilising provided cut line „ Dome opens 45mm
„ Dome opens 45mm
„ Powder coated grey aluminium frame, grey tinted toughened
„ Now includes Stedlife1 Automatic Glass Breaker with ceramic glass. Suits roof thickness 29mm - 70mm achieved by utilising
head. Complete with seat belt cutter and holster provided cut line
IRONWORK
„ Powder coated grey aluminium frame, grey tinted toughened „ Fit with handles to front and rear of vehicle.
glass.
„ Fit with handles to front and rear of vehicle.

LIGHTING

LOCKS
A

B

STEPS

C
Part No. A B C Kg Finish Part No. A B C Kg Finish
821970 1027 591 24 13.475 Tinted Glass 821475 541 541 24 7.245 Tinted Glass
821970DG 1027 591 24 12.84 Dark Tinted Glass 821530 591 591 24 6.89 Tinted Glass

VENTILATION
