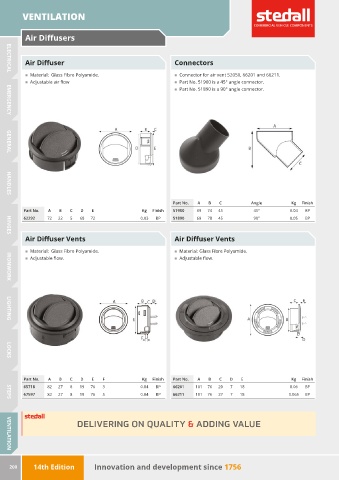

Page 202 - Stedall Parts Catalogue 14th Edition

VENTILATION

Air Diffusers

Air Diffuser Connectors

ELECTRICAL
„ Material: Glass Fibre Polyamide. „ Connector for air vent 52050, 66201 and 66211.
„ Adjustable air flow „ Part No. 51900 is a 45° angle connector.
„ Part No. 51890 is a 90° angle connector.

EMERGENCY

GENERAL

HANDLES
Part No. A B C Angle Kg Finish
Part No. A B C D E Kg Finish 51900 69 74 45 45° 0.04 BP

62292 72 22 5 68 72 0.03 BP 51890 69 78 45 90° 0.05 BP

Air Diffuser Vents Air Diffuser Vents
HINGES

„ Material: Glass Fibre Polyamide. „ Material: Glass Fibre Polyamide.
„ Adjustable flow. „ Adjustable flow.

IRONWORK

LIGHTING

LOCKS

Part No. A B C D E F Kg Finish Part No. A B C D E Kg Finish
65718 82 27 8 19 76 3 0.04 BP 66201 101 76 20 7 18 0.06 BP
67597 82 27 8 19 76 5 0.04 BP 66211 101 76 27 7 18 0.065 BP
STEPS

DELIVERING ON QUALITY & ADDING VALUE

VENTILATION
