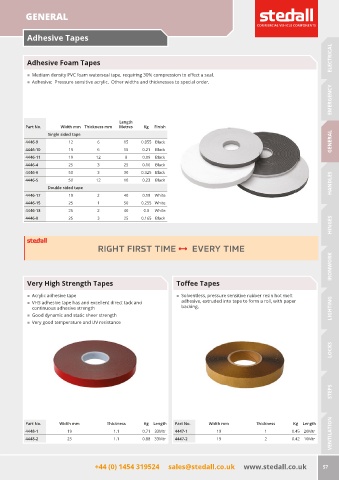

Page 59 - Stedall Parts Catalogue 14th Edition

GENERAL

Adhesive Tapes

ELECTRICAL

Adhesive Foam Tapes

„ Medium density PVC foam waterseal tape, requiring 30% compression to effect a seal.
„ Adhesive: Pressure sensitive acrylic. Other widths and thicknesses to special order.
EMERGENCY

Length
Part No. Width mm Thickness mm Metres Kg Finish
Single sided tape
4446-9 12 6 15 0.055 Black GENERAL
4446-10 19 6 15 0.21 Black
4446-11 19 12 8 0.09 Black
4446-4 25 3 25 0.16 Black
4446-6 50 3 30 0.325 Black
4446-5 50 12 10 0.23 Black HANDLES
Double sided tape
4446-17 19 2 40 0.18 White
4446-15 25 1 50 0.255 White
4446-13 25 2 40 0.3 White
HINGES
4446-8 25 3 25 0.165 Black

RIGHT FIRST TIME  EVERY TIME
IRONWORK

Very High Strength Tapes Toffee Tapes

„ Acrylic adhesive tape „ Solventless, pressure sensitive rubber resin hot melt
„ VHS adhesive tape has and excellent direct tack and adhesive, extruded into tape to form a roll, with paper
continuous adhesive strength backing. LIGHTING
„ Good dynamic and static sheer strength
„ Very good temperature and UV resistance

LOCKS

STEPS

VENTILATION
Part No. Width mm Thickness Kg Length Part No. Width mm Thickness Kg Length
4448-1 19 1.1 0.71 33Mtr 4447-1 19 1 0.45 20Mtr
4448-2 25 1.1 0.88 33Mtr 4447-2 19 2 0.42 10Mtr

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 57
