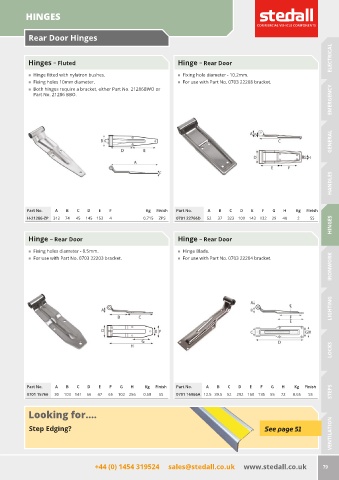

HINGES



           Rear Door Hinges

                                                                                                                     ELECTRICAL

           Hinges — Fluted                                     Hinge — Rear Door

           „  Hinge fitted with nylatron bushes.               „  Fixing hole diameter - 10.2mm.
           „  Fixing holes 10mm diameter.                      „  For use with Part No. 0703 22208 bracket.
                                                                                                                     EMERGENCY
           „  Both hinges require a bracket, either Part No. 21286BWO or
             Part No. 21286 BBO.





                                                                                                                     GENERAL








                                                                                                                     HANDLES






          Part No.  A   B   C   D   E  F            Kg  Finish  Part No.  A   B   C  D   E   F   G   H   Kg  Finish
          H-21286-ZP  312  74  45  145 153  4      0.715  ZPS  0701 22766D  52  37  323 100 143 132  29  40  2  SS
                                                                                                                     HINGES


           Hinge — Rear Door                                   Hinge — Rear Door

           „  Fixing holes diameter - 8.5mm.                   „  Hinge Blade.
                                                                                                                     IRONWORK
           „  For use with Part No. 0703 22203 bracket.        „  For use with Part No. 0703 22204 bracket.





                                                                                                                     LIGHTING








                                                                                                                     LOCKS







          Part No.  A   B   C   D   E  F   G   H    Kg  Finish  Part No.  A  B   C   D   E   F  G   H   Kg  Finish
          0701 15766  30  103 141  66  47  65  102 256  0.58  SS  0701 16966A 12.5 39.5  52  292 160 135  55  72  0.65  SS  STEPS

           Looking for....
                                                                                                                     VENTILATION
           Step Edging?                                                                       See page 51
