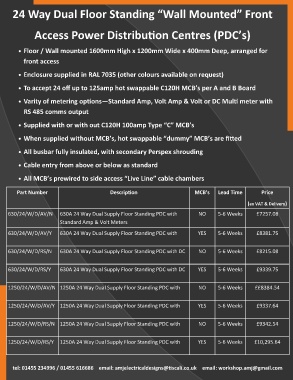

Page 10 - 54VDC STANDARD PRODUCT CATALOGUE.pub

24 Way Dual Floor Standing “Wall Mounted” Front

Access Power Distribu3on Centres (PDC’s)

• Floor / Wall mounted 1600mm High x 1200mm Wide x 400mm Deep, arranged for

front access

• Enclosure supplied in RAL 7035 (other colours available on request)

• To accept 24 off up to 125amp hot swappable C120H MCB’s per A and B Board

• Varity of metering op3ons—Standard Amp, Volt Amp & Volt or DC Mul3 meter with
RS 485 comms output

• Supplied with or with out C120H 100amp Type “C” MCB’s

• When supplied without MCB’s, hot swappable “dummy” MCB’s are fiJed

• All busbar fully insulated, with secondary Perspex shrouding

• Cable entry from above or below as standard

• All MCB’s prewired to side access “Live Line” cable chambers

Part Number Descrip3on MCB’s Lead Time Price
(ex VAT & Delivery)

630/24/W/D/AV/N 630A 24 Way Dual Supply Floor Standing PDC with NO 5-6 Weeks £7257.08
Standard Amp & Volt Meters

630/24/W/D/AV/Y 630A 24 Way Dual Supply Floor Standing PDC with YES 5-6 Weeks £8381.75

630/24/W/D/RS/N 630A 24 Way Dual Supply Floor Standing PDC with DC NO 5-6 Weeks £8215.08

630/24/W/D/RS/Y 630A 24 Way Dual Supply Floor Standing PDC with DC YES 5-6 Weeks £9339.75

1250/24/W/D/AV/N 1250A 24 Way Dual Supply Floor Standing PDC with NO 5-6 Weeks ££8384.54

1250/24/W/D/AV/Y 1250A 24 Way Dual Supply Floor Standing PDC with YES 5-6 Weeks £9337.64

1250/24/W/D/RS/N 1250A 24 Way Dual Supply Floor Standing PDC with NO 5-6 Weeks £9342.54

1250/24/W/D/RS/Y 1250A 24 Way Dual Supply Floor Standing PDC with YES 5-6 Weeks £10,295.64
